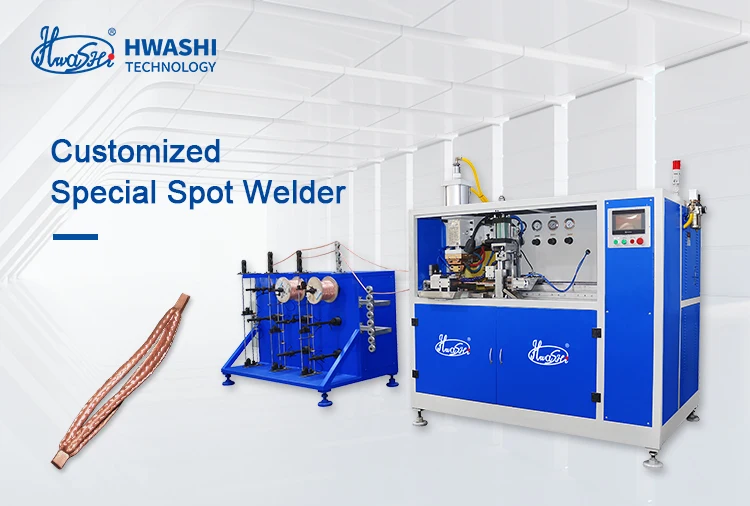

HWASHI DC Automatic Cooper Braid Wire Manufacturers Auto Welding and Cutting Machine

Brand Name : HWASHI

Model Number : WL-MF-100K

Certification : CE/CCC/ISO

Place of Origin : China

MOQ : 1 set

Price : negotiation

Payment Terms : L/C, T/T

Supply Ability : 50 sets per month

Delivery Time : 7-30 working days after received your payment

Packaging Details : sea worthy wooden package

After-sales Service Provided : Engineers available to service machinery overseas

name : Flexible Copper Electrical Conductor Press Welding Machine

power : power

max short circuit current : 100000A

rated frequency : rated frequency

Contact Now

HWASHI DC Automatic Cooper Braid Wire Manufacturers Auto Welding and Cutting Machine
HWASHI DC Automatic Cooper Braid Wire Manufacturers Auto Welding and Cutting Machine
This machine is designed to complete the welding and shearing automatically. Once adjusting the related parameters, it can change the shape of welding and length of cutting. The welding length is 60-100mm (adjustable). It can weld 4- 14 wires. The dimension of welding (width and length) is maximum 8x10mm and minimum 4x4.5mm (adjustable).
Features
The Welding spots are good in looking, firm, stable and reliable. Well consistency of welding spots. Wide application. The machine, electricity and other mechanism could be reasonably assembled. It could be used to weld other similar products after relevant modification of microcomputer data program. One machine could serve several purposes.
Technology Description Through the feeding system-wire output wheel, the braid wire enters into the welding center to complete the process of feeding wire. Then the wire output system stop working, the welding forming device start working to press the wire on the preset position. The cylinder will press down to complete the welding. Next, the stay wire cylinder start to output the wire to preset length. When reaching the preset value, the cutting device starts cutting the wire. At last, the stay wire cylinder starts to pull out the completed wire and put it into the discharging box.
After-sales Service Provided
Engineers available to service machinery overseas
name
Flexible Copper Electrical Conductor Press Welding Machine
power
800KVA
max short circuit current
100000A
rated frequency
50/60Hz
HWASHI DC Automatic Cooper Braid Wire Manufacturers Auto Welding and Cutting Machine

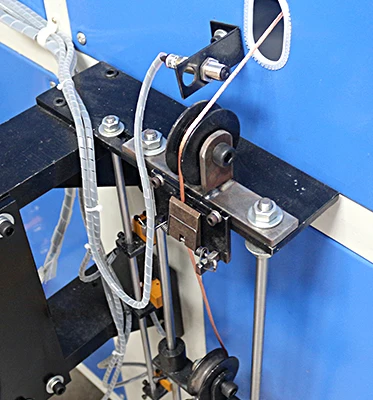

1.Feeding system

Through the feeding system-wire output wheel, the braid wire enters into the welding center to complete the process of feeding wire
HWASHI DC Automatic Cooper Braid Wire Manufacturers Auto Welding and Cutting Machine

2.Welding system

The welding forming device start working to press the wire on the preset position. The cylinder will press down to complete the welding
HWASHI DC Automatic Cooper Braid Wire Manufacturers Auto Welding and Cutting Machine

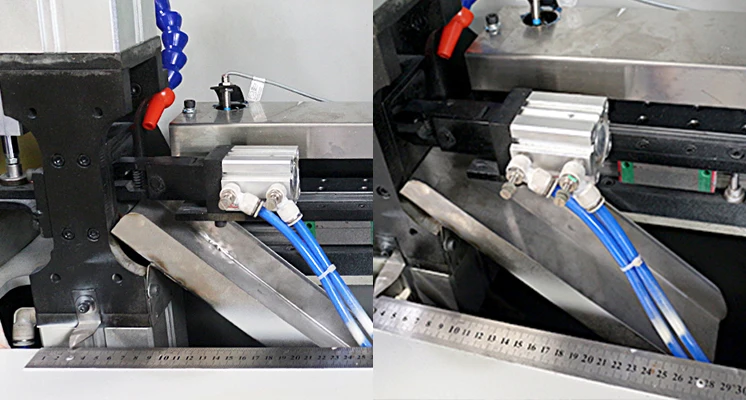

3.Cutting device
The stay wire cylinder start to output the wire to preset length. When reaching the preset value, the cutting device starts cutting the wire
